The Smart Zoning Choice is Honeywell TrueZONE®

Complete Product Line

For complete zoning solutions for nearly any application, the only name you need to know is Honeywell. Updates to the line, like the TrueZONE® Damper, make zoning easier and more efficient than ever. You can count on the most extensive and innovative product line available, including conventional and wireless solutions. All are designed for installation ease, and in many cases pre-packaged kits simplify ordering and make installation even easier. With the innovative TrueZONE Panel and new TrueZONE Dampers, giving your customers the many benefits of zoning has never been simpler.

True Zone Panels

When Honeywell re-invented zoning panels with TrueZONE®, it said goodbye dip switches and hello simplicity. Installation is fast and easy, and because TrueZONE ensures that the system is operating properly before the installer leaves the jobsite, callbacks are virtually eliminated.

dunckleeinc

Honeywell delivers ease and simplicity with TrueZONE panels:

Intuitive Installer Setup — Easy-to-follow, digital display guides you through the installation. (HZ432 and HZ322)
RedLINKTM Wireless Technology — Eliminates pulling thermostat wires to the TrueZONE panel and allows for added comfort control with the Portable Comfort Control and Wireless Outdoor Air Sensor. (HZ432 and HZ322 only, Wireless Adapter Required)
Standardized Checkout Procedure — Ensures that every installer checks out in the same way every time and that all zones are operating correctly before leaving the jobsite. Only one installer needed for checkout. (HZ432 and HZ322)
Robust Push Terminals — Cut wiring time in half compared to screw terminals — with no screwdriver required. Plus, wires lock in to the terminals for a tight fit.
Common-Sense LEDs — Indicate which zones are calling, what stage they are calling for (heat/cool) and when the emergency heat is on.

Universal Application — Works with virtually any brand equipment for zone control of conventional, heat pump or dual-fuel systems. Clean, Professional Installation — Patented wire channel allows installer to run wires on the side, top, bottom or backside of the panel and wire anchors help hold wires in place.
Smaller Footprint — All panels are only eight inches wide and can be mounted anywhere — on the return duct, studs or wall next to the system. Variable-Speed Fan Control — Reduces blower speed in cooling when one zone is calling.
Discharge Temperature (DATS) Staging — Downstages equipment when discharge air temperature is near the limit or shuts down. Advanced Dual-Fuel Operation — Offers dual-fuel changeover based on outdoor temperature and/or thermostat staging. (HZ432 only)

Options for Every Application

All Honeywell TrueZONE panels feature Robust Push Terminals, Common-Sense LEDs, Universal Application, Variable-Speed Fan Control, Discharge Air Temperature Staging and a 5-Year Warranty.

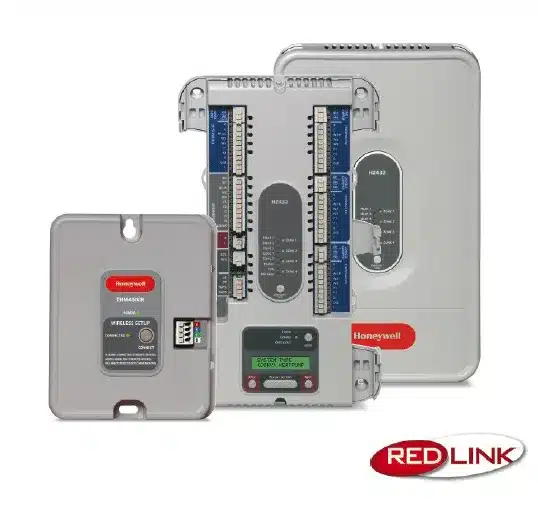

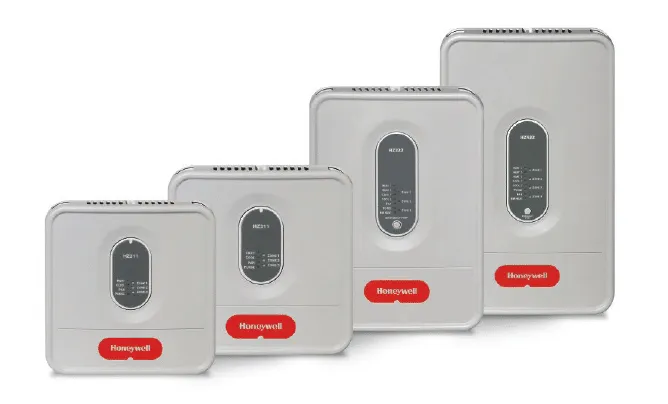

TrueZONE® HZ432 Panel

For conventional, heat pump or dual-fuel applications. 4-zone panel, expandable up to 32 zones.

• Up to 3H/2C Conventional or Heat Pump
• Intuitive Installer Setup
• RedLINK Enabled with Wireless Adapter (up to 4 zones)
• Standardized Checkout Procedure
• Advanced Dual-Fuel Operation, up to 2 Compressor and 2 Fossil Fuel Stages

dunckleeinc

TrueZONE HZ322 Panel

For conventional and heat pump applications. Up to 3 zones.
• Up to 2H/2C Conventional or 2H/1C Heat Pump
• Intuitive Installer Setup
• RedLINK Enabled with Wireless Adapter
• Standardized Checkout Procedure

dunckleeinc

TrueZONE HZ311 Panel

For conventional, single-stage applications. Up to 3 zones.
• 1H/1C Conventional
• Clean, Professional Installation
• Smaller Footprint
• Great for New Construction

dunckleeinc

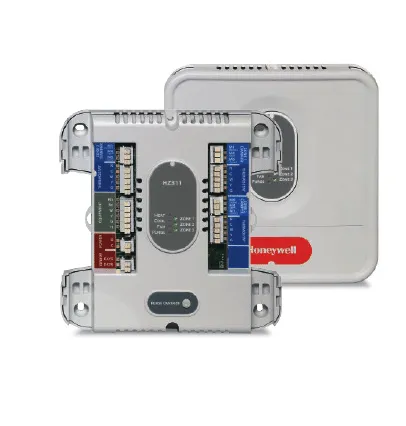

TrueZONE HZ221 Panel

For single-stage heat pump applications with auxiliary heat.
• 2H/1C Heat Pump
• Clean, Professional Installation
• Smaller Footprint
• Great for New Construction

dunckleeinc

Wireless Zoning Systems

With Honeywell’s exclusive RedLINK™ Wireless Technology, our full suite of wireless-enabled comfort solutions let you easily – and wirelessly – add zoning to a home or building; or, add more zones to an existing system. Accessory add-ons offer comfort, convenience and remote connectivity for your customers.

dunckleeinc

Add — One Wired, One Wireless

When one room or area is too hot or cold, the perfect solution is a RedLINK-enabled TrueZONE panel and Wireless Adapter Kit. Because TrueZONE panels support both wired and wireless thermostats, you can keep a wired model and simply add a RedLINK-enabled thermostat like the Prestige IAQ or the VisionPRO® 8000.

Four Zones Made Effortless and Wireless

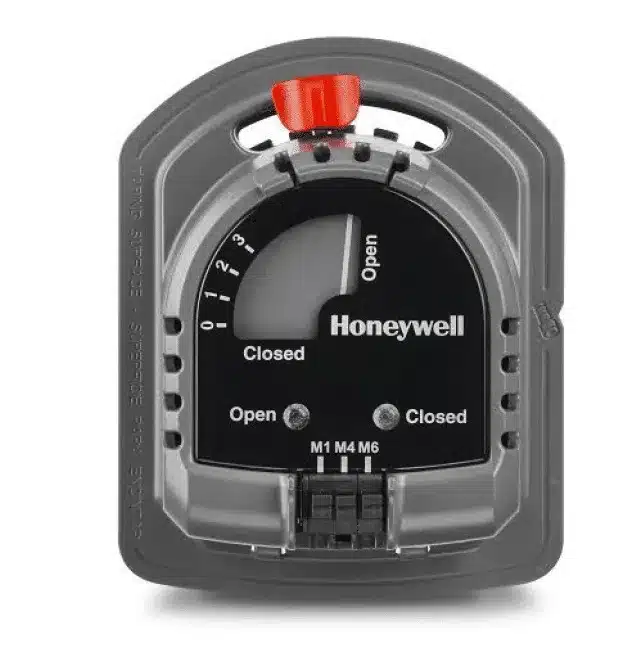

Often homeowners want more than two zones. With a TrueZONE HZ432 panel and the Wireless Adapter Kit, you can add up to four zones (per panel) without running thermostat wires. The Wireless Outdoor Sensor offers more control possibilities. The remote temperature sensing ensures better overall comfort, plus the sensors provide the homeowner with temperature and humidity information.

dunckleeinc
dunckleeinc

Rectangular ZD Zoning Damper
See the Honeywell damper difference.

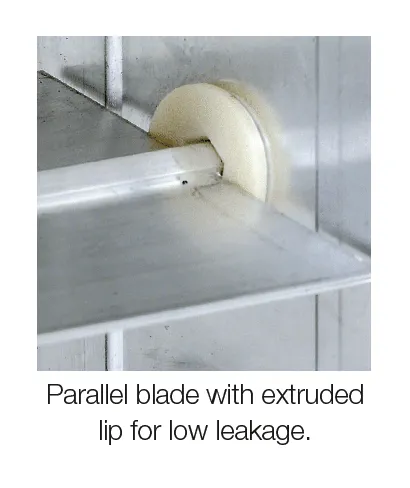

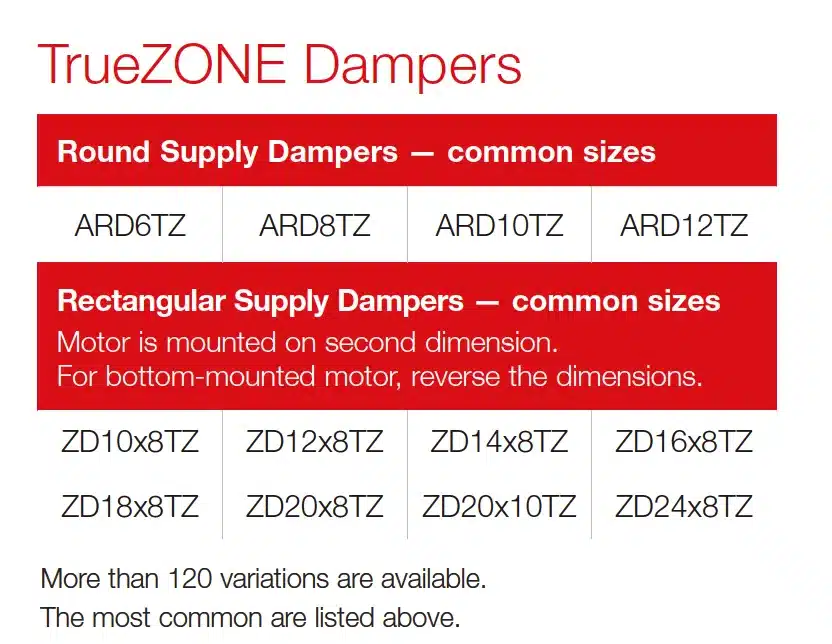

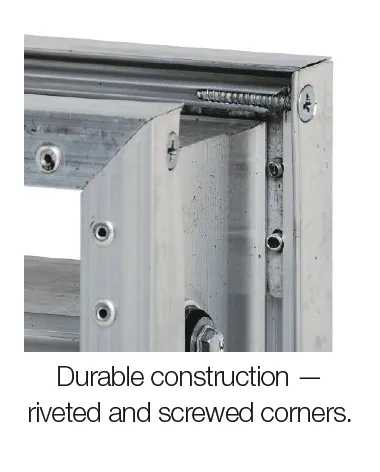

Honeywell ZD dampers are available in both side-mount and bottom-mount models. A power-close, spring-open damper, the ZD operates quietly and features a parallel blade design for low-leakage performance. Available in over 125 sizes.

dunckleeinc
dunckleeinc
dunckleeinc
dunckleeinc

Round ARD Dampers

Honeywell Automatic Round Dampers (ARD) are single-blade models that close tightly to minimize leakage and feature a position indicator for damper status.

  • Outstanding seal — Built with gasket to ensure low leakage of less than 1 percent
  • Sizes available from 5″ to 20″
  • Modulating round dampers (MARD) available from 6″ to 18″
  • Fresh air dampers available in power open/spring close orientation (EARD)
  • Rugged construction built to last • 5-Year Warranty
dunckleeinc

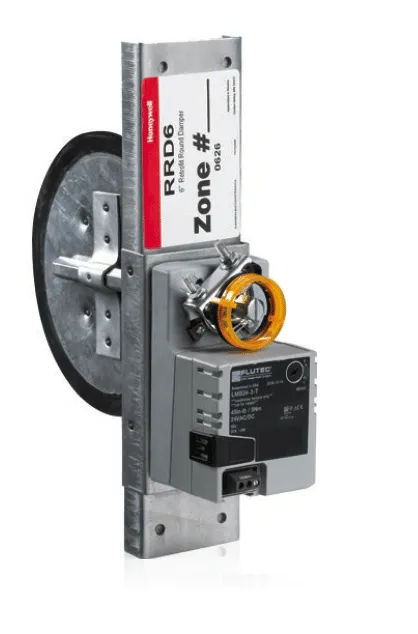

Round RRD Dampers

Ideal for retrofit applications in rigid duct, Honeywell’s complete line of retrofit dampers ensures that you will have the right size for any job.

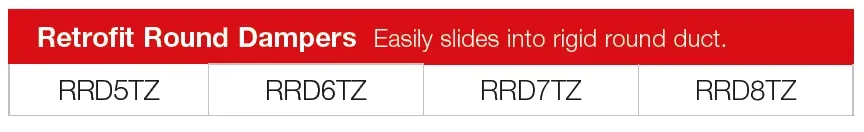

  • Sizes available from 5″ to 8″
  • Cycle tested to 100,000 cycles with less than 5 percent leakage at .5 wc
  • Visual position indicator, range stops and manual position adjustment
  • Features a 2.5 VA actuator, enabling the connection of up to 12 dampers on any of the Honeywell zone panels without a damper expansion module
  • 5-Year Warranty

round rrd dampers honeywell duncklee

Bypass Dampers

Bypass dampers are required in nearly all zoning installations to relieve pressure. The latest addition to Honeywell’s lineup is the timesaving TrueZONE® Bypass Damper that truly simplifies installation.

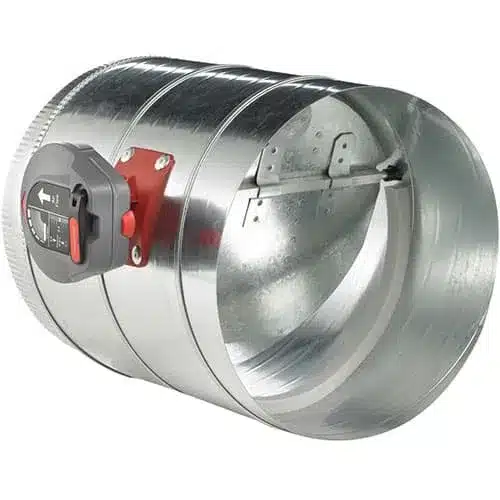

TrueZONE Bypass Damper

TrueZONE Bypass Dampers

By replacing the old weight system with a simple crank, Honeywell has created one of the most game changing bypass damper innovations to come along in years. Installation that used to take one to two hours now takes just 15 minutes.

  • No weights to balance
  • Can be installed in any orientation, including angles
  • Designed to provide constant pressure relief regardless of blower speed
  • Quiet, efficient and reliable
  • 5-Year Warranty

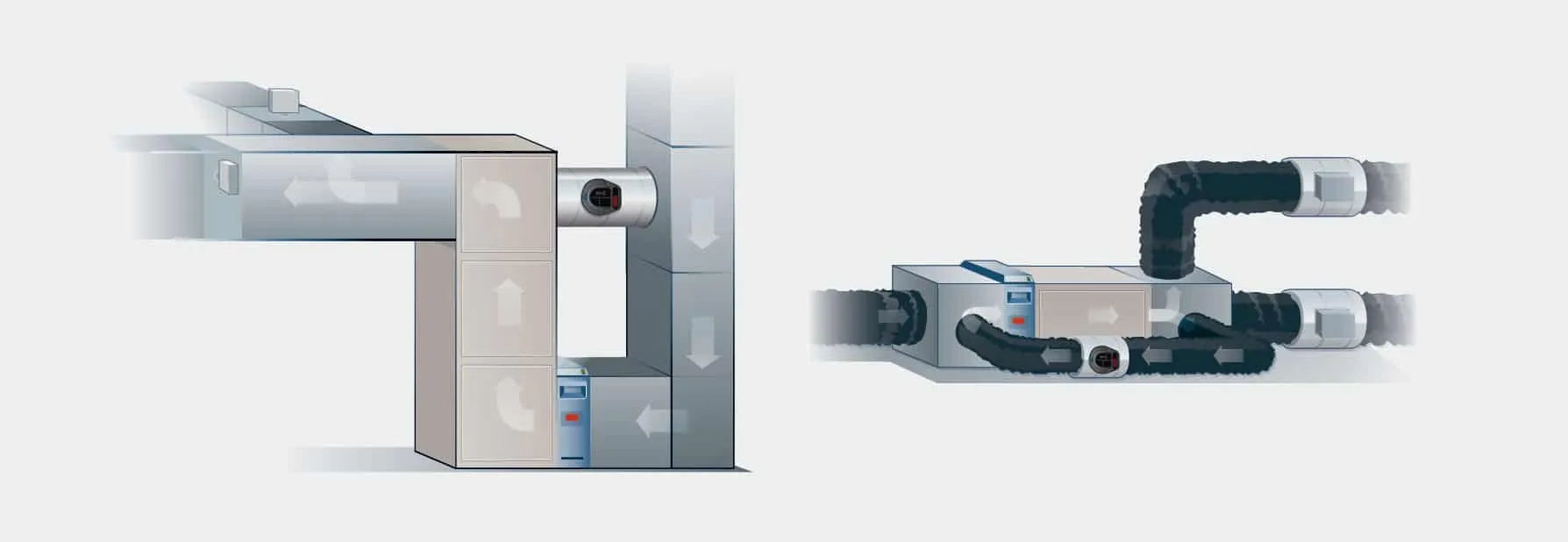

Simple and Smart

Honeywell zoning solutions save you time on every project with easy installation of components and living-space controls along with the famous Honeywell reliability that reduces callbacks. Add in the high level of homeowner satisfaction with the improved comfort control and energy savings, and it’s easy to see how Honeywell zoning solutions help you gain long-term customers.
